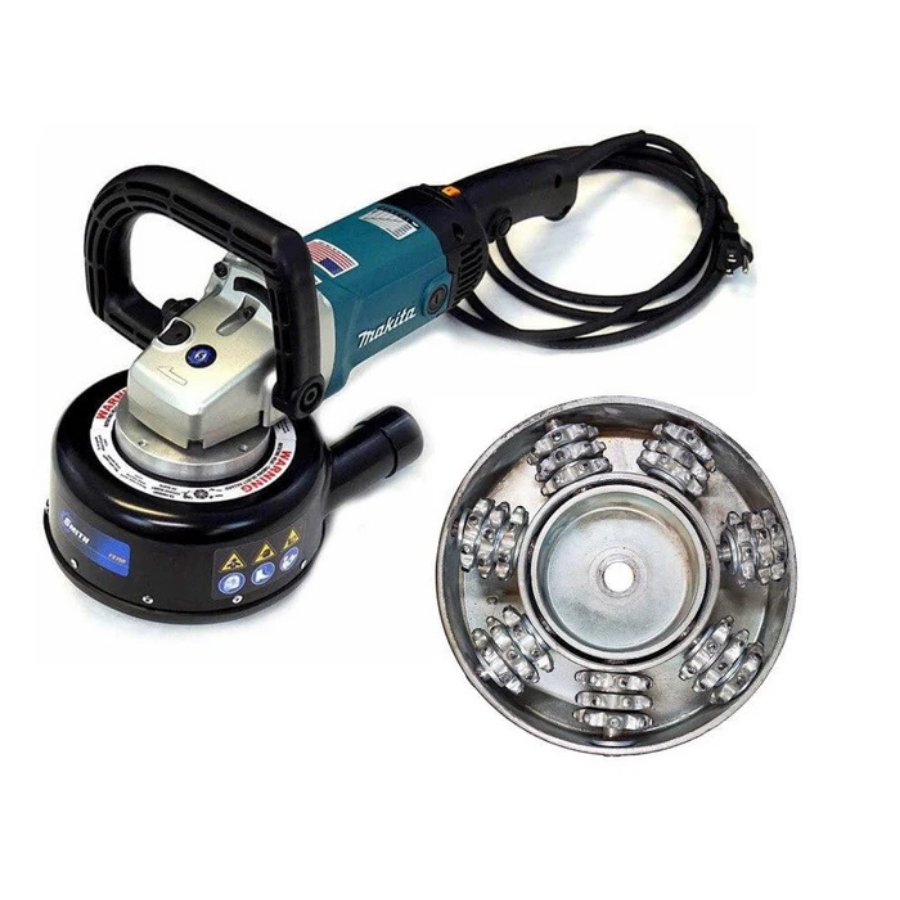

The SMITH FS150 is a fast, rugged, and lightweight handheld rotary eraser, designed for heavy-duty scabbling, texturing, abrading, descaling, reducing, keying, and cleaning asphalt and concrete. Cleans up to a 7" removal path using a variety of cutters to achieve the surface finishes required for the job. Add a vacuum for dust-free applications.
If you can't find the information you need, ask our experts.
Contact UsThe SMITH FS150 is a fast, rugged, and lightweight handheld rotary eraser, designed for heavy-duty scabbling, texturing, abrading, descaling, reducing, keying, and cleaning asphalt and concrete. Cleans up to a 7" removal path using a variety of cutters to achieve the surface finishes required for the job. Add a vacuum for dust-free applications.
Best for touch-ups, reducing, smoothing, polishing, scarifying, erasing, and more. Used by concrete contractors and do-it-yourselfers.
Standard FeaturesWeight: 13 lbs. (5.8kg)
Dims: 20 x 12 x 11 in
Manuals
F150 Operation and Parts Manual
Custom patterns and cut widths from 2″ to 8″ available
The surface profile (SP) chart is used as a visual representation of desired surface textures, roughness, and general appearance on concrete or asphalt. Each profile has a corresponding number, ranging from SP1 (nearly flat) to SP10 (extremely rough).
The surface profile is defined as the measurement of the average distance from the peaks of the surface to the valleys, as seen through a cross-section of the prepared surface.
The texture and appearance of the profile obtained through the surface-preparation process will vary, depending upon the concrete/asphalt strength, composition, aggregate and finish. On sound surfaces, the range of variation can be controlled to represent these standards, however, as removal depth increases, the profile of the prepared substrate will be increasingly dominant by the type and size of the coarse aggregate.
Confirmation that the desired profile has been achieved during the surface-preparation process is done by visually inspecting the surface, then comparing it to the profiles depicted by replica profile tiles, replica putty, replica tape, or SP photos (see below). The replica putty test is ASTM D7682, and the replica tape test is ASTM D4417.
The creation of a surface profile can be accomplished with a variety of tools, equipment and materials, and requires a specification to select the desired SP range, dependent upon the type of overlay system and material thickness to be installed
